Replacement Parts For A0103-CA

Replacement Parts For A0103-CA | <p>Replacement Parts For A0103-CA</p>
Replacement Parts For A0103-CA | <p>Replacement Parts For A0103-CA</p>
Order Replacement Parts

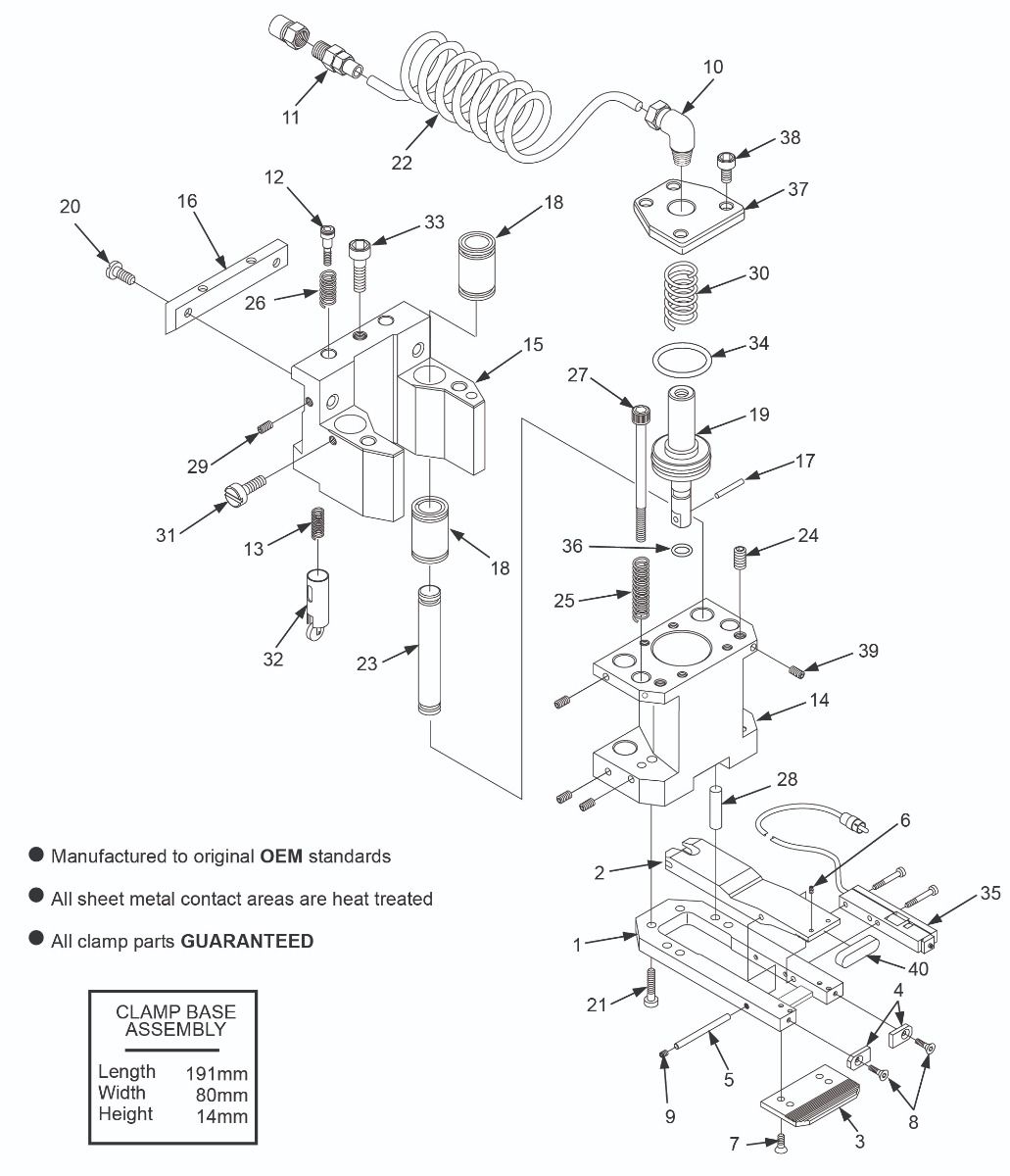

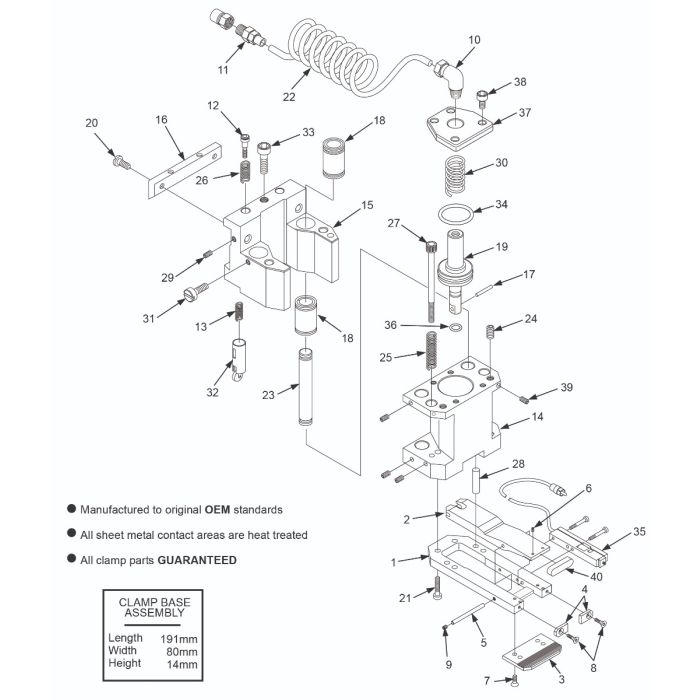

Illustration # Part # Product Description Qty
1 A0103-CA
Complete Clamp Assembly-Octo

Amada # 74208001 / 6010220a

Availability:
4 In stock
$1,375.00
1 A0203-CBA
Clamp Base Assembly-Octo

Amada # 74208131 / 5033643a

Availability:
15 In stock
$285.00
1 A0303-B
Clamp Base-Octo

Amada # 74173806 / 5033643a

Availability:
20+ In stock
$150.00
NS A0203-CBAS
Clamp Base Assembly-Octo Special

Clamp Base Assembly-Octo Special
Phone Order Only! Please Call
:(55) 85 26 41 21
2 A0403-CL
Clamper-Octo

Amada # 74208146 / 5033644d

Availability:
20+ In stock
$105.00
3 A0501-CP
Clamp Plate

Amada # 74161354 / 816025


Amada # 826235

Availability:
20+ In stock
$26.00
4 A0601-SP
Stopper Plate

Amada # 74161353 / 816026

Availability:
20+ In stock
$10.00
5 A0794
Straight Pin M6 X 60

Amada # 74571118 / 826285

Availability:
20+ In stock
$1.50
6 A0830
Set Screw M5x6 Pkg of 10

Set Screw cup M5 X 6 Pkg of 10

Availability:
20+ In stock
$3.00
7 A0831
Screw M5x12 Pkg of 10 for Clamp Plate

Screw M5x12 Pkg 10 CP

Availability:
20+ In stock
$3.00
8 A0832
Screw M4x10 Pkg of 10 for Stopper Plate

Amada # 40011066 / m4x10 / Screw M4 x 10 Pkg of 10SP

Availability:
20+ In stock
$3.00
9 A0835
Set Screw M8 X 8 Each

Amada # 74722739 / p330590023

Availability:
20+ In stock
$0.40
10 A4155
Male Elbow

Amada # 74169983

KQL06-02S Male Elbow

Tube Size: 6mm

1/4 inch PT

Availability:
20+ In stock
$5.75
11 A4123
Male Connector

KQH06-02S Male Connector

Tube Size: 6mm

1/4 inch PT

Availability:
20+ In stock
$6.90
12 A0887
Shoulder Bolt M8 X 25

p337135015 / Shoulder Bolt M8 x 25

Availability:
20+ In stock
$3.00
13 A0891
Spring

Spring

Availability:
20+ In stock
$3.00
14 A0824
Clamp Body-Piston Side Pneumatic-Octo

Clamp Body-Piston Side Pneumatic-Octo

Availability:
12 In stock
$499.00
15 A0823
Clamp Body-Dove Tail Side-Octo

Clamp Body-Dove Tail Side-Octo

Availability:
10 In stock
$499.00
16 A0881
Dove Tail Plate

Amada # 74165903 / 816004

Availability:
20+ In stock
$44.00
17 A0882
Pin-Pneumatic Piston

p337020028 / Pin for Pneumatic Piston

Availability:
20+ In stock
$1.00
18 A0862
Linear Bearing

Linear Bearing ST16B

Availability:
20+ In stock
$24.99
19 A0621
Clamp Piston OCTO

Clamp Piston (OCTO)

Availability:
19 In stock
$375.00
20 A0875
Bolt

Amada # 74165904 / 816005

Availability:
20+ In stock
$9.90
21 A0895
Bolt M8 X 25

Amada # 36147516 / screw SHCS M8x25

Availability:
20+ In stock
$1.00
22 A0876
Clamp Coil Tubing

Clamp Coil Tubing

Availability:
20+ In stock
$18.00
23 A0898
Rod 16mm x 120 mm

Rod 16mm x 120mm

Availability:
20+ In stock
$18.00
24 A0820
M10 x 25 Dog End Set Screw

52332269 / P330570035

Availability:
20+ In stock
$3.00
25 A0877
Hanging Spring

Amada # 74390105 / 826218

Availability:
20+ In stock
$5.00
26 A0888
Spring

Amada # 74165905 / 816006

Availability:
20+ In stock
$3.00
27 A0902
Screw SHCS M6 X 100MM

Amada # 90106100 / M6 X 100

Availability:
20+ In stock
$1.00
28 A0966
Dowel Pin

Amada # 74377352

Availability:
20+ In stock
$3.00
30 A0846
Cylinder Spring

Amada # 74161330 / 806005

Availability:
20+ In stock
$19.00
32 A0859
Plunger Assembly Octo

Amada # 74161389 / 6010227.28.29.30.

Availability:
15 In stock
$79.00
33 A0839d
Hex Cap Screw-M12 x 20 Pkg of 10

Hex Cap Screw-M12 x 20 Pkg of 10

Availability:
20+ In stock
$7.90
34 A9234
O-Ring P-50A

O-Ring P-50A

Availability:
20+ In stock
$1.50
35 A0855A
Sheet Sensor (For Auto Loader)

Amada # 74161252 / 8635270D

Availability:
20+ In stock
$165.00
36 A9220
O-Ring P-12

O-Ring P-12

Availability:
20+ In stock
$0.75
37 A0878A
Cylinder Cap Octo

Amada # 74303522 / 826188

Availability:
20+ In stock
$150.00
38 A0895
Bolt M8 X 25

Amada # 36147516 / screw SHCS M8x25

Availability:
20+ In stock
$1.00
39 A0889a
Set Screw M6 X 6 PKG of 10

Set Screw M6 X 6 PKG of 10

Availability:
15 In stock
$3.00
40 A0850
Urethane Boot - For Clamper Tip

Urethne Boot - For Clmper Tp 1

Availability:
20+ In stock
$25.00
N/A A0803
Connector-20sm

Amada # 74162521 / 20SM 1/4

Availability:
13 In stock
$11.90
N/A A0804
Connector-20PF

Amada # 74162522 / 20pf-1/4/ 20ph-1/4

Availability:
11 In stock
$4.90
N/A A0840
Shims .010 - Pkg of 10.

Shims .010 - Pkg of 10

Availability:
17 In stock
$16.00
N/A A0841
Shims .003 - Pkg of 10

Shims .003 - Pkg of 10

Availability:
20+ In stock
$16.00
N/A A0842
Shims .005 - Pkg of 10

Shims .005 - Pkg of 10

Availability:
20+ In stock
$16.00
Request Quote

Ask a Question?

Description / Replacement Parts For A0103-CA

Replacement Parts For A0103-CA

74208001 / 6010220a

Related Products

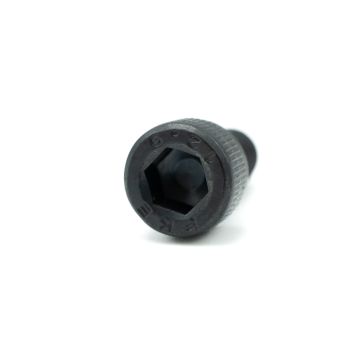

Socket Cap Screw-M6 x 12
Socket Cap Screw-M6 x 12
Part#: A0849

m6x12 / Amada # 36147526

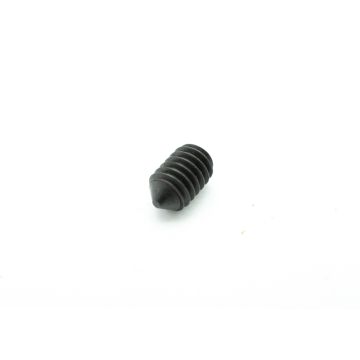

Cone Point Set Screw
Cone Point Set Screw
Part#: A0825

M4 X 6 Cone Point Set Screw

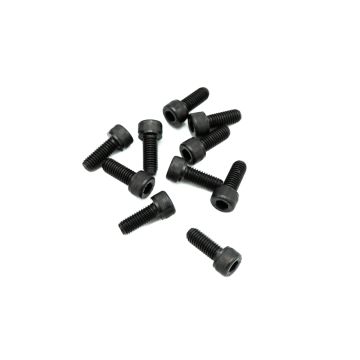

Socket Cap Screw-M8 x 20 Pkg of 10
