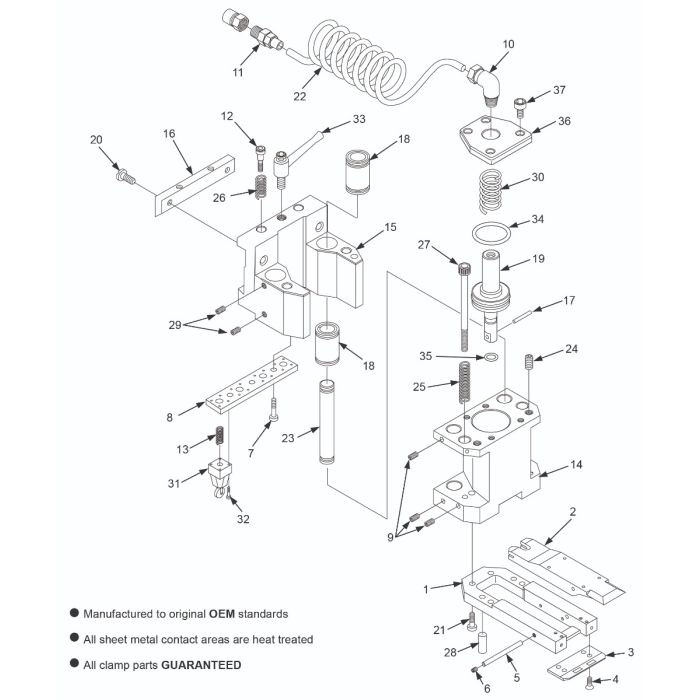

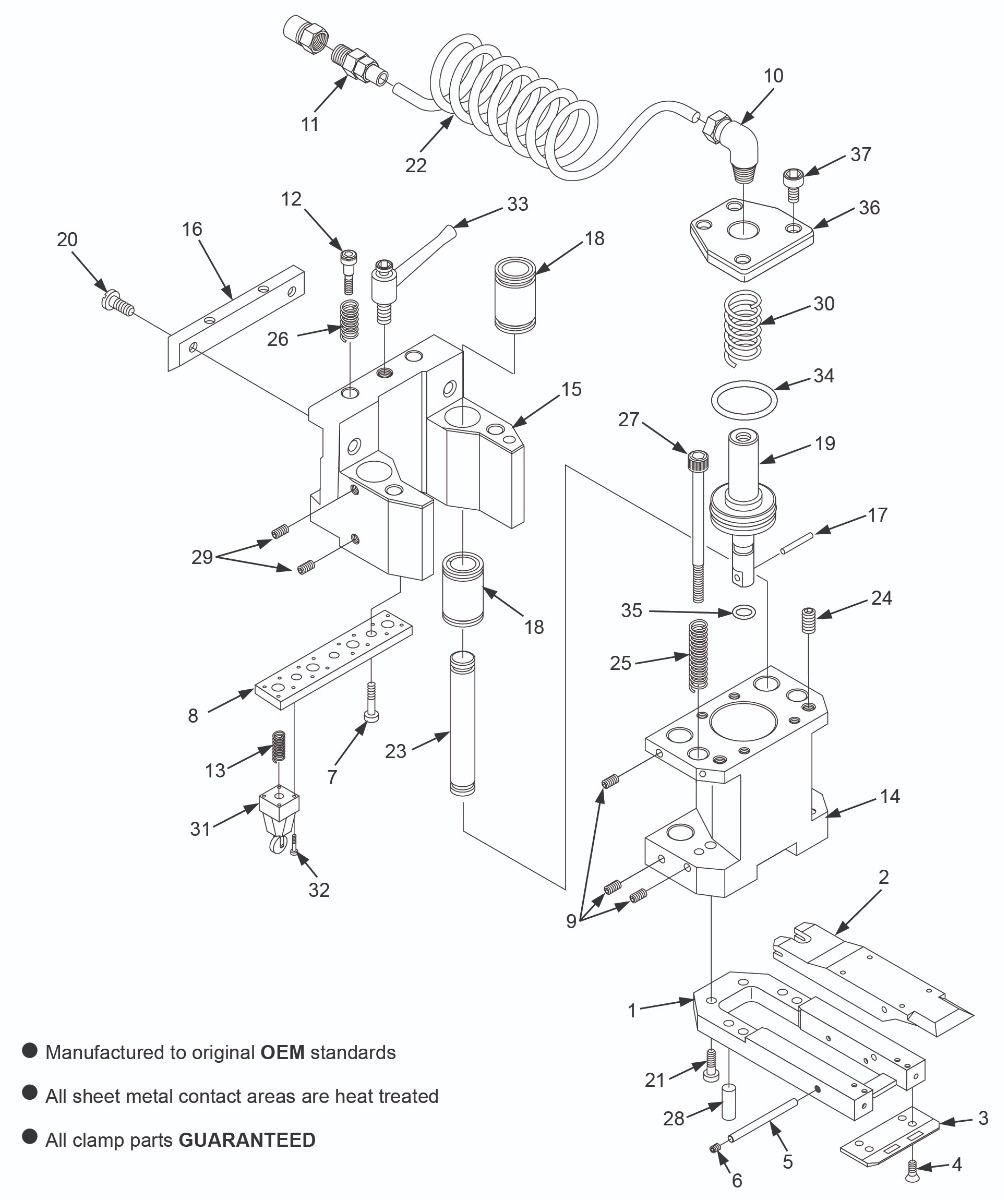

Replacement Parts For A0111-CA

Order Replacement Parts

Illustration #

Part #

Product Description

Qty

A0111-CA

Complete Clamp Assembly-T9 Stealth

Amada # 1662495 / 71398368

Availability:

Out of stock

$1,475.00

A0211-CBA

T9 Stealth Clamp Base Assembly

Amada # 74398083

Availability:

20+ In stock

$576.00

A0312-B

T9 Stealth Clamp Base

Amada # 1662497 / 71365917

Availability:

20+ In stock

$365.00

A0412-CL

T9 Stealth Clamper

Amada # 1662498 / 71365918

Availability:

20+ In stock

$209.00

A0512-CP

Clamp Plate Stealth

Amada # 1662499a / 71368477

Availability:

20+ In stock

$60.00

A0893

Flat Socket Cap Screw M5 X 12

Amada # 74388640 / m5x12 / Cap screw

Availability:

20+ In stock

$1.00

A0794

Straight Pin M6 X 60

Amada # 74571118 / 826285

Availability:

20+ In stock

$1.50

A0835

Set Screw M8 X 8 Each

Amada # 74722739 / p330590023

Availability:

20+ In stock

$0.40

A0828a

Screw-M6 X 20 (pkg of 10)

Screw M6 X 20 Button Head

Availability:

20+ In stock

$1.90

A0851

Head Spacer(laser clamps)

Amada # 71366582 / 1662500

Availability:

20+ In stock

$75.00

A4155

Male Elbow

Amada # 74169983

KQL06-02S Male Elbow

Tube Size: 6mm

1/4 inch PT

Availability:

20+ In stock

$5.75

A4123

Male Connector

KQH06-02S Male Connector

Tube Size: 6mm

1/4 inch PT

Availability:

20+ In stock

$6.90

A0887

Shoulder Bolt M8 X 25

p337135015 / Shoulder Bolt M8 x 25

Availability:

20+ In stock

$3.00

A0891

Spring

Availability:

20+ In stock

$3.00

A0874A

Clamp Body-Piston Side Pneumatic Laser

Body-Piston Side Pneumatic Laser

Availability:

Out of stock

$499.00

A0879

Clamp Body-Dove Tail Side New

Amada # 74335806 / 826181a

Availability:

20+ In stock

$499.00

A0881

Dove Tail Plate

Amada # 74165903 / 816004

Availability:

20+ In stock

$44.00

A0882

Pin-Pneumatic Piston

p337020028 / Pin for Pneumatic Piston

Availability:

20+ In stock

$1.00

A0862

Linear Bearing

Linear Bearing ST16B

Availability:

20+ In stock

$24.99

A0622

Clamp Piston

AMADA # 843907 / 71135020

Availability:

Out of stock

$375.00

A0895

Bolt M8 X 25

Amada # 36147516 / screw SHCS M8x25

Availability:

20+ In stock

$1.00

A0876

Clamp Coil Tubing

Availability:

20+ In stock

$18.00

A0898

Rod 16mm x 120 mm

Rod 16mm x 120mm

Availability:

20+ In stock

$18.00

A0820

M10 x 25 Dog End Set Screw

52332269 / P330570035

Availability:

20+ In stock

$3.00

A0877

Hanging Spring

Amada # 74390105 / 826218

Availability:

20+ In stock

$5.00

A0888

Spring

Amada # 74165905 / 816006

Availability:

20+ In stock

$3.00

A0902

Screw SHCS M6 X 100MM

Amada # 90106100 / M6 X 100

Availability:

20+ In stock

$1.00

A0966

Dowel Pin

Amada # 74377352

Availability:

20+ In stock

$3.00

A0831e

Screw M4 X .7 x 6 Pkg of 10

Set Screw cup M4 X .7 x 6

Availability:

20+ In stock

$1.90

A0846a

Cylinder Spring

Cylinder Spring laser

Availability:

20+ In stock

$19.00

A0871L1

Head NOTE: Includes 4 M4 x 16 Bolts

Amada # 74163416 / 74312507

Availability:

20+ In stock

$39.00

A0890

Soc Cap Bolt M4 X 20 PKG OF 10

Availability:

16 In stock

$3.00

A0812

Clamp Lever Assembly - 12MM

kr12x20 / Clamp Lever Assembly - 12MM
Amada # 806075

Availability:

20+ In stock

$29.00

A9234

O-Ring P-50A

Availability:

20+ In stock

$1.50

A9220

O-Ring P-12

Availability:

20+ In stock

$0.75

A0878

Cylinder Cap

Amada # 74303522 / 826188

Availability:

20+ In stock

$150.00
