Replacement Parts For A0117-TQ

Replacement Parts For A0117-TQ
Replacement Parts For A0117-TQ
Order Replacement Parts

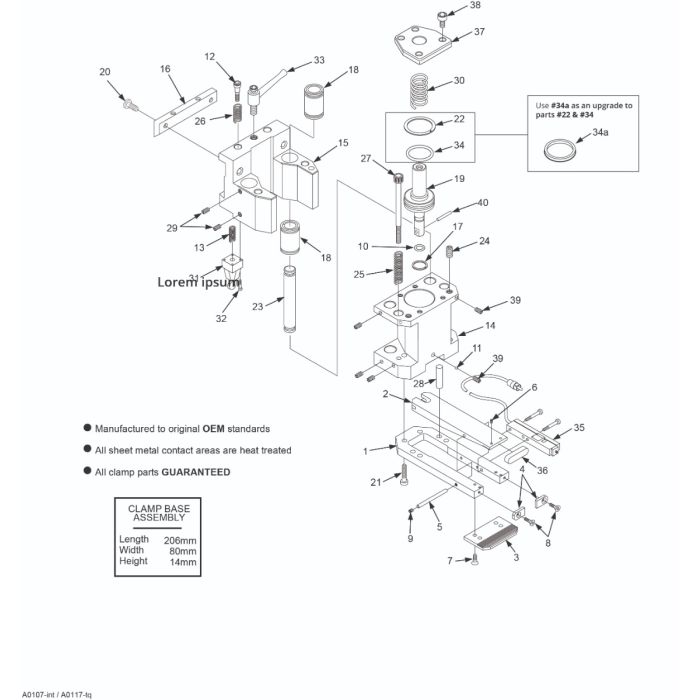

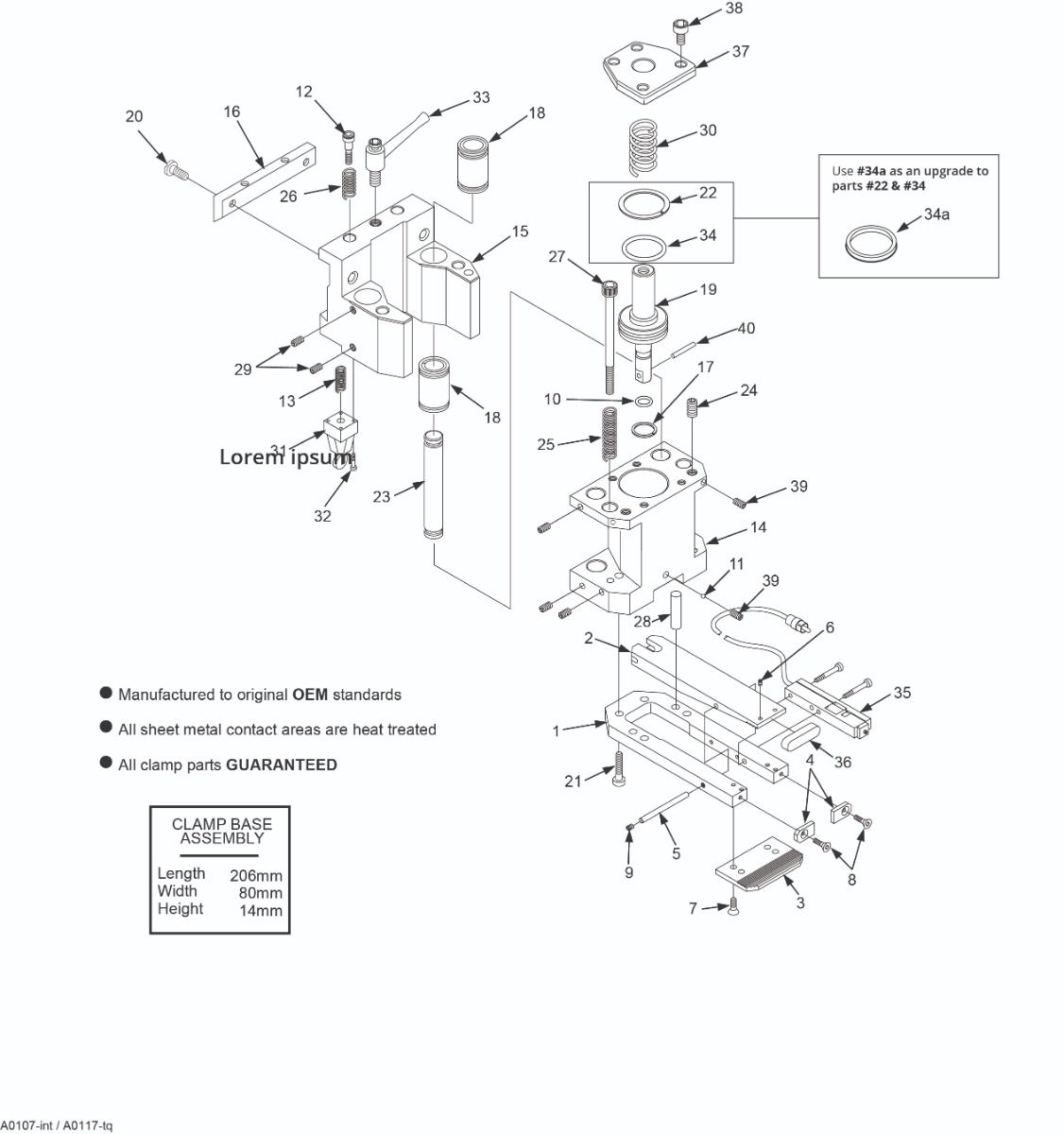

Illustration # Part # Product Description Qty
1 A0315-B
Clamp Base EM Hydraulic

Amada # 826271 / 74315820

Availability:
20+ In stock
$315.00
1 A0215-CBA
Clamp Base Assembly EM Hydraulic

Clamp Base Assembly EM Hydraulic

Amada # 74315826

Availability:
9 In stock
$489.00
2 A0407-CL
Clamper - Coma New Style Hydraulic

Amada # 74315825 / 826194

Availability:
20+ In stock
$105.00
3 A0500-CP
Clamp Plate EM

Amada # 74569334 / 826272 / 74161576 / 74569480 / 826274

Availability:
20+ In stock
$41.00
4 A0601-SP
Stopper Plate

Amada # 74161353 / 816026

Availability:
20+ In stock
$10.00
5 A0796
Straight Pin M8 X 60

Amada # 74198999

Availability:
20+ In stock
$1.50
6 A0830
Set Screw M5x6 Pkg of 10

Set Screw cup M5 X 6 Pkg of 10

Availability:
20+ In stock
$3.00
7 A0821
Screw Clamp Plate EM pkg 10 (m6x12)

Amada # 74569335 / 826035 (m6x12)

Availability:
17 In stock
$3.00
8 A0832
Screw M4x10 Pkg of 10 for Stopper Plate

Amada # 40011066 / m4x10 / Screw M4 x 10 Pkg of 10SP

Availability:
20+ In stock
$3.00
9 A0836
Set Screw M10 X 12 Each

Amada # 79999115 / m10x12

Availability:
20+ In stock
$1.00
10 A9227
O Ring P-22 (90 Durometer)

Amada # 90014022

Availability:
20+ In stock
$0.99
11 A0865
3/16 Steel ball

Amada # 74316027

Availability:
20+ In stock
$2.00
12 A0887
Shoulder Bolt M8 X 25

p337135015 / Shoulder Bolt M8 x 25

Availability:
20+ In stock
$3.00
13 A0891
Spring

Spring

Availability:
20+ In stock
$3.00
14 A0872HN
Clamp Body-Piston Side Hydraulic

Clamp Body-Piston Side-Hydraulic

Availability:
Out of stock
$499.00
16 A0881
Dove Tail Plate

Amada # 74165903 / 816004

Availability:
20+ In stock
$44.00
17 A8342
Back Up Ring

Amada # 74717102 / 74161337 / T2-P22 / P-22-T2

Availability:
20 In stock
$5.50
18 A0862
Linear Bearing

Linear Bearing ST16B

Availability:
20+ In stock
$24.99
19 A0620HN
Clamp Piston

Amada # 74303513 / 826184b

Availability:
20+ In stock
$575.00
20 A0875
Bolt

Amada # 74165904 / 816005

Availability:
20+ In stock
$9.90
21 A0895
Bolt M8 X 25

Amada # 36147516 / screw SHCS M8x25

Availability:
20+ In stock
$1.00
22 A8341
Back Up Ring

Amada # 74717104 / 74161338 / T2-32 / P-32-T2

Availability:
14 In stock
$6.00
23 A0898
Rod 16mm x 120 mm

Rod 16mm x 120mm

Availability:
20+ In stock
$18.00
24 A0848
Set Screw Dog End M10 x 12

Amada # 74305509 / M10x14 / Set Screw (dog end)

Availability:
20+ In stock
$0.45
25 A0877
Hanging Spring

Amada # 74390105 / 826218

Availability:
20+ In stock
$5.00
26 A0888
Spring

Amada # 74165905 / 816006

Availability:
20+ In stock
$3.00
27 A0902
Screw SHCS M6 X 100MM

Amada # 90106100 / M6 X 100

Availability:
20+ In stock
$1.00
28 A0966
Dowel Pin

Amada # 74377352

Availability:
20+ In stock
$3.00
29 A0825
Cone Point Set Screw

M4 X 6 Cone Point Set Screw

Availability:
20+ In stock
$0.25
30 A0846HN
Cylinder Spring(hydraulic)

Amada # 74315813 / Cylinder Spring (Hydraulic)

Availability:
20+ In stock
$13.00
31 A0871
Head (NOTE: Includes 4 M4 x 20 Bolts)

6wph200-1 / Amada # 74163416

Availability:
20+ In stock
$41.00
32 A0835
Set Screw M8 X 8 Each

Amada # 74722739 / p330590023

Availability:
20+ In stock
$0.40
33 A0812
Clamp Lever Assembly - 12MM

kr12x20 / Clamp Lever Assembly - 12MM
Amada # 806075

Availability:
20+ In stock
$29.00
34 A9230
O-Ring P-32 (90 Durometer)

Amada # 90014032

Availability:
Out of stock
$0.99
34a A9654
U-Cup Seal

U-Cup Seal

Availability:
20+ In stock
$17.00
35 A0855A
Sheet Sensor (For Auto Loader)

Amada # 74161252 / 8635270D

Availability:
20+ In stock
$165.00
36 A0850
Urethane Boot - For Clamper Tip

Urethne Boot - For Clmper Tp 1

Availability:
20+ In stock
$25.00
37 A0878HN
Cylinder Cap

Cylinder Cap (New Hyd.)

Availability:
20+ In stock
$150.00
38 A0849
Socket Cap Screw-M6 x 12

m6x12 / Amada # 36147526

Availability:
20+ In stock
$0.30
40 A0873i
Pin

Dowel Pin 8 x 30

Availability:
20+ In stock
$3.00
41 A0889a
Set Screw M6 X 6 PKG of 10

Set Screw M6 X 6 PKG of 10

Availability:
15 In stock
$3.00
